Model Parameters

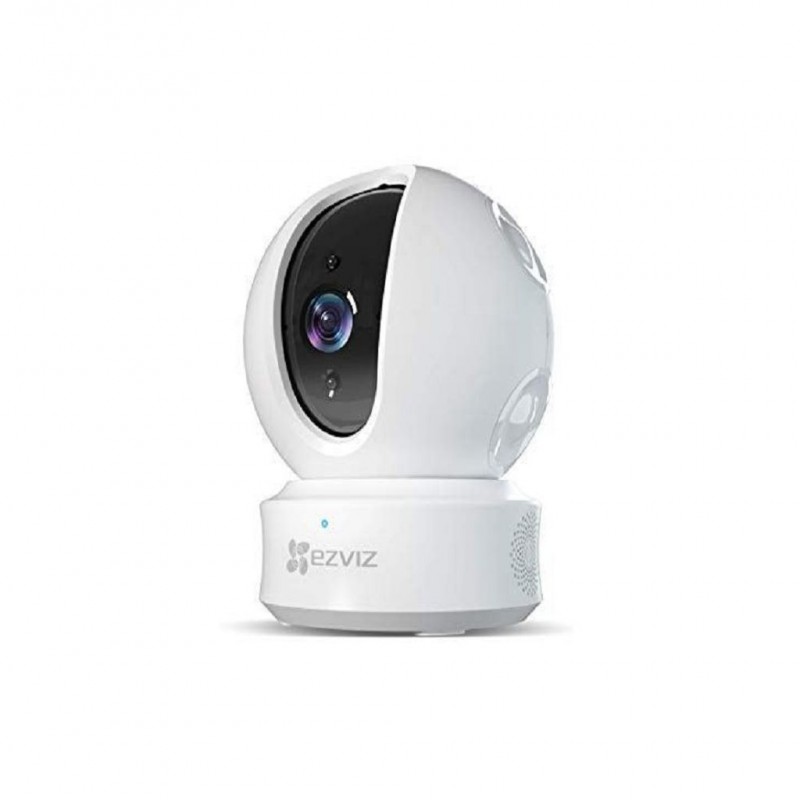

Name C6CN

Model CS-CV246-A0-1C2WFR

Camera

Image Sensor 1/2.9″ Progressive Scan CMOS

Shutter Speed Self-adaptive shutter

Lens 4mm@ F2.2, view angle:82° (Horizontal), 94°(Diagonal)

PT Angle Pan: 340°, Tilt: 120°

Lens Mount M12

Day & Night IR-cut filter with auto switch

DNR 3D DNR

WDR Digital WDR

Compression

Video Compression H.264

H.264 Type Main profile

Video Bit Rate Ultra-HD; HD; Standard. Adaptive bit rate

Auto Bit Rate Self-adaptive


Max. Resolution 1920 x 1080

Frame Rate Max. 15fps; Self-Adaptive during network transmission

Network

Smart Alarm Motion detection

Wi-Fi Pairing AP pairing

Protocol EZVIZ cloud proprietary protocol

Interface Protocol EZVIZ cloud proprietary protocol

General Features Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Max. Bitrate 2Mbps

Interface

Storage Micro SD card (Max. 256G)

Power Micro USB

Network RJ45 × 1(10M/100M Adaptive Ethernet Port)

Wi-Fi

Standard IEEE802.11b, 802.11g, 802.11n

Frequency Range 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth Supports 20MHz

Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps

General

Power Supply DC 5V/1A

Power Consumption Max. 5.0W

IR Range Max. 10 meters (32.8ft)

Product Dimensions 87.7mm x 87.7mm x 112.7mm (3.45〃 x 3.45〃 x 4.43〃)

Packaging Dimensions 103mm x 103mm x 188mm (4.06〃 x 4.06〃 x 7.40〃)

Weight 260g(0.57lbs)
