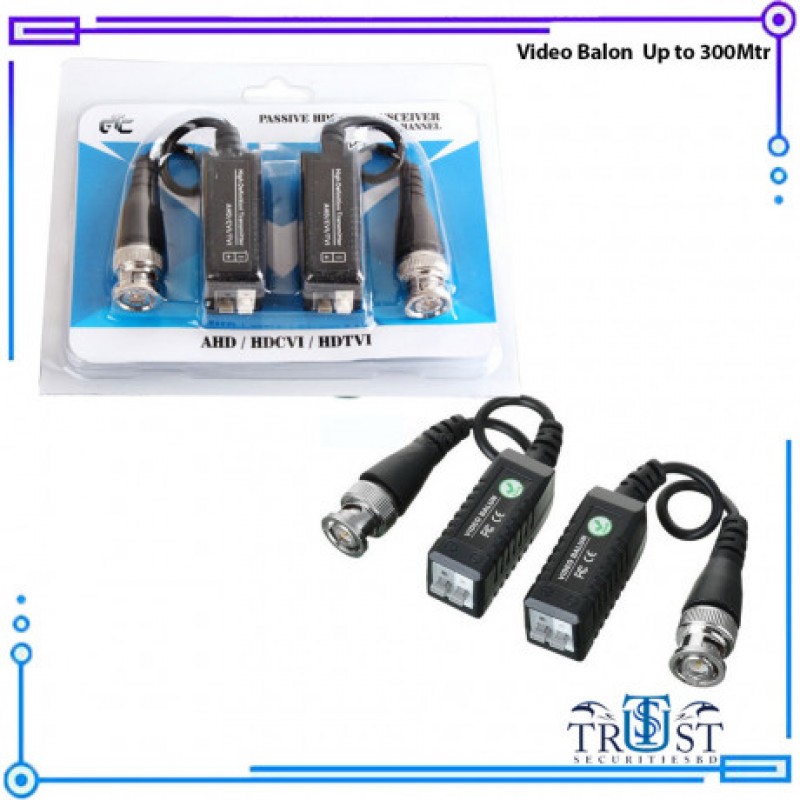

CCTV Camera AHD HD-TVI CVI UTP Video Balun Upto 300 Meter

  • In Stock

  • 0 Review(s)

Price :

120৳

01869565196

Deal Code: DC11303917

Report This Item


  • Contact Number
    • 01717264314
      AHD TVI CVI passive twisted pair video transmission equipment, and can be used to send and receive use, without providing power, signal transmission distance of 0-225 meters color, black and white signals over 400 meters

      It can be used for short distance transmission of video surveillance, such as office buildings, residential, schools, hospitals, etc.

      – Power transmission signals: 1 channel HD analog HD signal
      – Transmission distance: AHD / HDCVI 720P: 300 m (maximum)
      AHD CVI TVI 1080P Transmission distance: 250 meters
      HDTVI 720P: 200 m (maximum)
      – Transmission media: UTP CAT5 / 5E / 6
      – Video transmission performance: coaxial BNC video interface metric
      – Compatible video format: AHD / HDCVI / HDTVI support resolution 720P / 1080P;
      – Interference> 60db
      – Protection level: 1a contact discharge ESD protection machine, level 3 1b air discharge level 3;
      – Implementation of the standards: IEC61000-4-2
      – Coaxial video interface Anti-: 2KV (common mode); the implementation of standards: IEC61000-4-5
      – Twisted pair video transmission connections Protection: 2KV (differential mode), 4KV (common mode),
      Executive Standard: IEC61000-4-5
      – Impedance: coaxial 75 Ω; twisted pair 100 Ω
      – Reliability: Mean Time Between Failures (MTBF)> 10000 Xiaoshi
      – Operating environment: Operating temperature -10-55 ℃; Storage temperature -20-70 ℃; humidity (non-condensing) 0-95%
      Built-in power supply to eliminate the magnetic field, pulsed electric field, low potential difference interference circuit, superior interference rejection, ultra-low electromagnetic radiation
      Built-in surge protection can phone, RS485 control data, audio, multi-channel video, and even low-voltage power transmission cables, in one or more of five categories of UN-shielded twisted pair of four pairs of wire to take a pair cable can transmit one signal, four pairs of wire can transmit a combination of four video, audio and data signals or more signals and interfere with each other. Single and receive active connector can be achieved with the use of more than 915 meters of the color signal transmission
